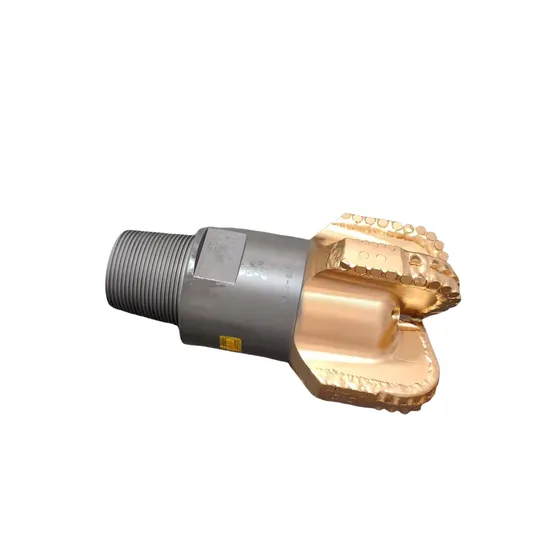

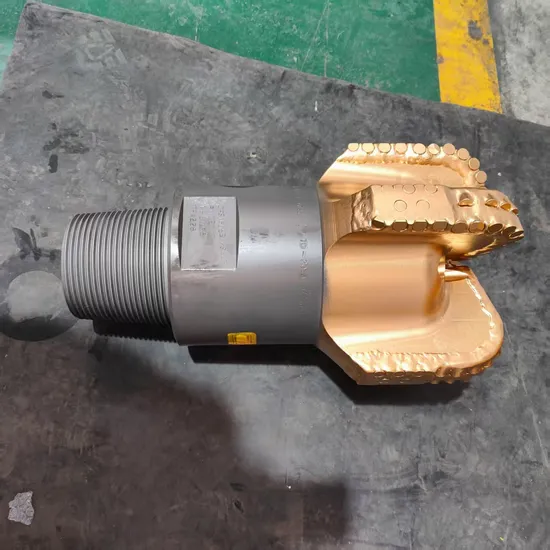

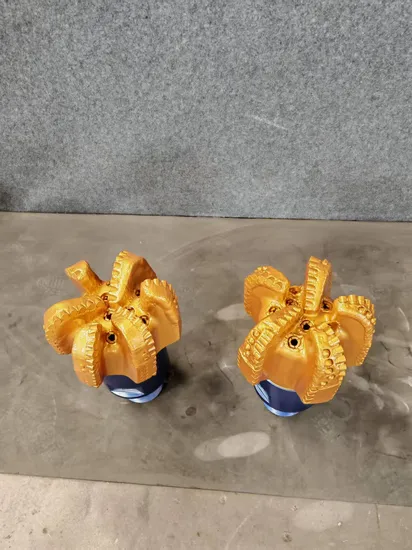

High-performance PDC drill bit with a long work-life, engineered for efficient micro core drilling in soft to medium hard formations.
Features a force-balanced cutting structure with an asymmetric and spiral blade design for enhanced operational stability.
Utilizes high-performance polycrystalline diamond compact (PDC) cutters to significantly extend the drill bit's service life.
Engineered with shock-absorbing teeth to effectively penetrate hard interlayer formations without compromising performance.
Hydraulic design is optimized using dynamic flow field simulation to improve cleaning, cooling, and prevent mud pockets.
The substrate surface is treated with advanced strengthening technology and high-erosion-resistant materials to prevent surface wear.
Optimized water hole design prevents internal flow channel erosion, ensuring consistent hydraulic performance.
Certification: ISO 9001:2008
Available Sizes: 3 1/2 inches to 26 inches (55mm - 311mm)
Body Material: High-strength 35CrMo Steel or Cast Tungsten Carbide Matrix
Thread Connection: Standard API REG threads from 2 3/8'' to 6 5/8''
Blade Wing Configuration: Available in 3, 4, 5, 6, 7, and 8 blade designs
Application: Optimized for oil & gas drilling, water well drilling, and geological exploration in soft to medium formations.
